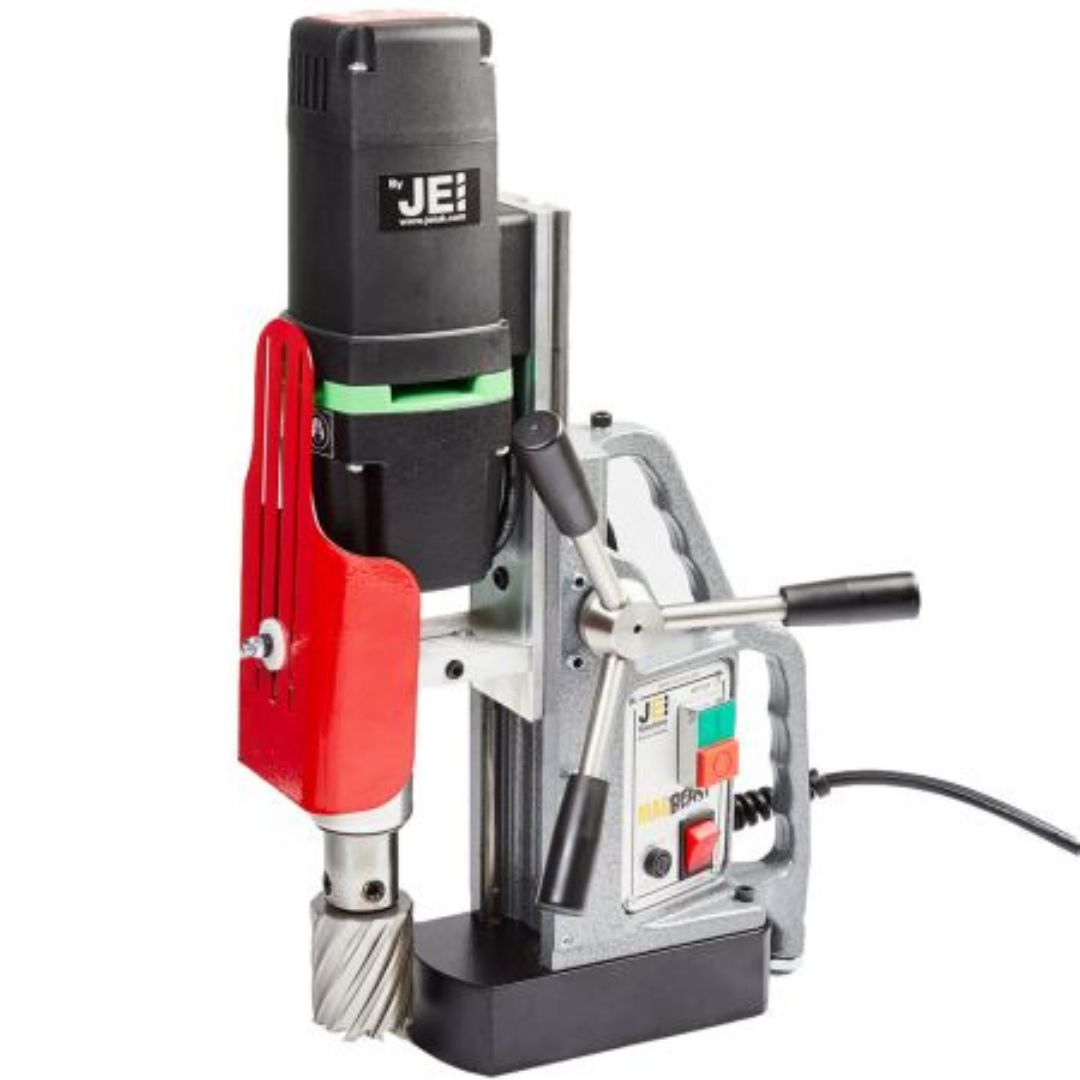

JEI MagBeast HM50 Magnetic Drill
Powerful, versatile and built for heavy-duty drilling applications, the JEI MagBeast HM50 Magnetic Drill delivers excellent cutting capacity with impressive portability. Ideal for fabrication, structural steelwork and professional workshop use.
£1,085.00 exc. VAT
£1,302.00
JEI MagBeast HM50 Magnetic Drill – Heavy-Duty Drilling with Exceptional Versatility
The JEI MagBeast HM50 Magnetic Drill is a durable and dependable heavy-duty magnetic drilling machine designed for accurate and efficient hole making using both TCT and HSS cutters. Combining powerful performance with a practical, lightweight design, the HM50 is ideal for fabrication workshops, structural steelwork and demanding site applications.
Featuring a 50mm cutter capacity, extra-long drill travel and 2 Morse taper versatility, it delivers professional drilling performance across a wide range of applications.
Excellent Power-to-Weight Ratio
Powered by a robust 1150W motor, the HM50 delivers strong drilling performance while weighing only 14kg. This excellent balance of portability and power makes it ideal for engineers and fabricators who require mobility without sacrificing capability.
Large Cutting Capacity with Extended Drill Travel
The HM50 is capable of drilling up to 50mm diameter holes with a cutting depth of up to 4 inches. Its extended drill travel allows the use of extra-long cutters, making it particularly useful for deeper drilling applications and structural steel fabrication.
Suitable for TCT and HSS Cutters
Designed for use with both TCT and HSS cutters, the machine provides excellent versatility across a range of drilling applications and materials.
Maintenance-Friendly Twin Slide Rail Design
The twin slide rail system is designed for adjustment-free operation with no wearing parts, helping minimise maintenance requirements while ensuring smooth and reliable performance.
Flexible and User-Friendly Operation
The spoke handles can be fitted to either the left or right side of the machine, allowing improved operator comfort and flexibility during use.
Professional Multi-Function Capability
In addition to annular cutting, the HM50 also supports twist drilling, countersinking and reaming, making it a highly versatile workshop and site drilling solution.
Key Features
- Heavy-duty magnetic drilling machine
- Powerful 1150W motor
- 50mm cutter capacity with 4" depth of cut
- Suitable for TCT and HSS cutters
- Lightweight design with excellent portability
- Extended drill travel for long cutters
- Maintenance-friendly twin slide rails
- Adjustable left or right-hand spoke handles
- Supports twist drilling, countersinking and reaming
- Strong magnetic base for secure operation
- Ideal for fabrication and structural steelwork
Ideal for Applications Including
The JEI MagBeast HM50 is ideal for:
- Structural steel fabrication
- Industrial drilling applications
- Workshop engineering tasks
- Site installation work
- Heavy-duty metal fabrication
If you need a versatile and powerful magdrill with excellent cutting capacity and portability, the JEI MagBeast HM50 delivers reliable professional performance.
Specifications
Specifications
- Brand: JEI Solutions
- Model: MagBeast® HM50 / HM50S
- Product Type: Magnetic Drill
- Weight: 14kg / 16.5kg (Swivel Version)
- Cutter Capacity: 50mm Ø x 4″ Depth of Cut
- Twist Drill Capacity:
- 13mm with 2MT Chuck
- 23mm with 2MT Twist Drill
- Countersink Capacity: 40mm
- Reaming Capacity: 22mm (19mm Shank)
- Spindle: MT2
- Motor Power: 1150W
- RPM:
- No Load: 465 / 720 RPM
- Loaded: 250 / 450 RPM
- Height Min/Max:
- Standard: 380mm / 560mm
- Swivel Version: 390mm / 590mm
- Machine Dimensions: 280mm x 170mm
- Magnetic Base Dimensions: 90mm x 180mm
- Magnet Deadlift: 1250kg on 1″ Plate (12000N)
- Noise Level: <90dB
- Vibration Level: <2.5 m/s²
- Max Stroke: 180mm / 200mm
- Shipping Weight: 18.15kg / 20.5kg
- Voltage Options:
- 110V – DRILL-HM50
- 240V – DRILL-HM50/2
Additional information
| Voltage | 110V, 230V |
|---|
